Aluminum alloy EN AW 2011 High-strength aluminum alloys, the marking of which determines the composition and scope of these materials, is offered by A-Sintez in the widest range. Rolled bars and sheets, as well as pipe sections, rods, tapes and strips, angles, tees and other products are constantly available. Casting of aluminum alloys is carried […]
Aluminum alloy EN AW 2011
High-strength aluminum alloys, the marking of which determines the composition and scope of these materials, is offered by A-Sintez in the widest range. Rolled bars and sheets, as well as pipe sections, rods, tapes and strips, angles, tees and other products are constantly available.
Casting of aluminum alloys is carried out on the most modern equipment, and additional alloying with magnesium, copper, zinc , silicon, carbon and other elements allows you to provide:
high strength;
· resistance to wear and deformation;
corrosion resistance.
To ensure corrosion resistance, heat treatment of aluminum alloys is used, which also guarantees high hardness of the newly formed material.
Applying
Aluminum and its EN AW 2011 alloy are in demand in various industries and productions. High thermal conductivity, electrical conductivity, strength with minimal weight, corrosion resistance have made it possible to find applications for alloys in such industries as:
· aircraft industry;
Aerospace;
mechanical engineering;
shipbuilding;
construction;
production of turbines and engines and so on.
You can always buy any aluminum alloys at the most affordable prices in the A-Sintez catalog , whose experts will answer any questions and advise you when choosing.
Alloy chemistry EN AW 2011
|
Si |
Fe |
Cu |
Zn |
Bi |
Pb |
Al |
|
<0,40 |
<0.70 |
5.0-6.0 |
<0.30 |
0.2-0.6 |
0.2-0.4 |
Other |
Material mechanical properties EN AW 2011
| Material state | T3 | T8 |
| Tensile strength (tensile strength), min., Rm, MPa | 320 | 370 |
| Yield strength, min., Rp0.2 in N/mm2 | 270 | 270 |
| Elongation, A50 mm, min., % | 10 | 8 |
| Brinell hardness, HB max. | 90 | 105 |
| Modulus of elasticity, MPa |
70 000 |
|
| Thermal expansion coefficient, μm/m-°C |
23.5 |
|
| Thermal conductivity, W/mK | 151 | 171 |
| Electrical resistance, Ωmm2/m | 0.038 | 0.043 |
| Aluminum grade | Delivery forms |
| EN AW 2011 | Aluminum tape thickness from 0.05 to 4mm, width from 5mm to 1600mm

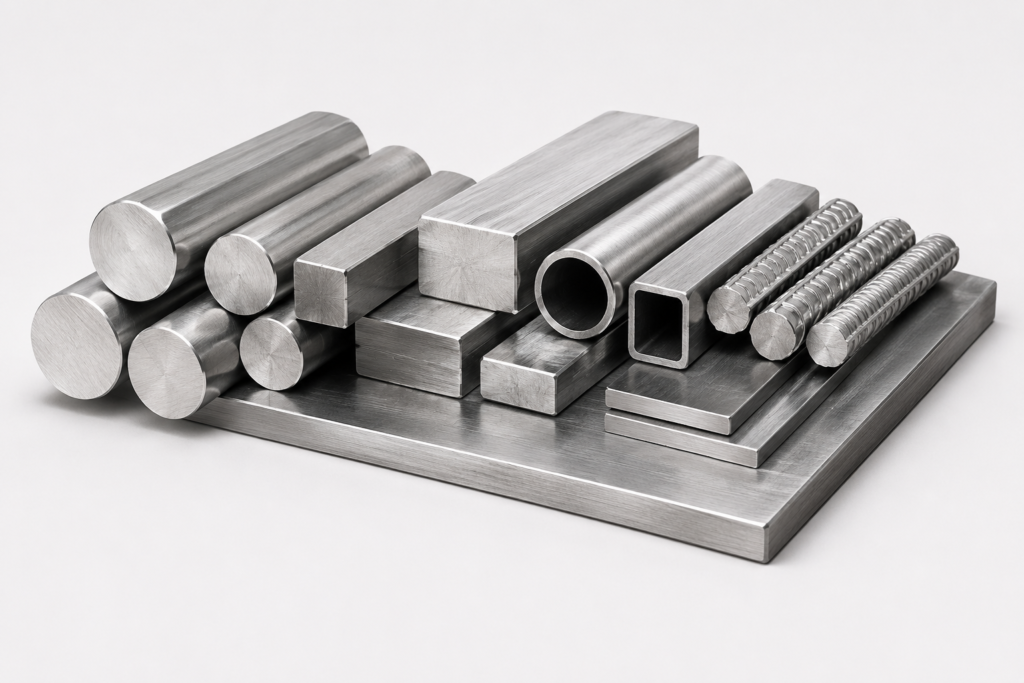

Aluminum sheet thickness from 0, 2 to 10mm, width up to 1600mm, length up to 7000mm Aluminum plate thickness from 10 to 150mm, width up to 1600mm, length up to 7000mm Aluminum circle diameter up to 800mm Aluminum hexagon diameter up to 500mm Aluminum square thickness up to 500mm Aluminum pipes with diameters from 40mm to 400mm Aluminum corrugated sheet thickness from 0.2 to 4mm, width up to 1600mm, length length up to 7000mm Aluminum square tubes from 10x10mm to 150x150mm Aluminum profile pipes sizes from 20x10mm to 200x100mm sizes from 10x10mm to 100x100mm Aluminum angle bars unequal-shelf sizes from 20x10mm to 200x100mm |
