Equal-shelf steel angles EN 10056 📌 Overview and Technical Specifications Equal-shelf steel angles according to EN 10056 are used in construction, mechanical engineering, and other industries where strong metal structures are required. They have good weldability, mechanical strength, and resistance to loads. 🛠 Technical Specifications (EN 10056-1) Angle Bar Size (mm) Thickness (mm) Weight (kg/m) […]
📌 Overview and Technical Specifications

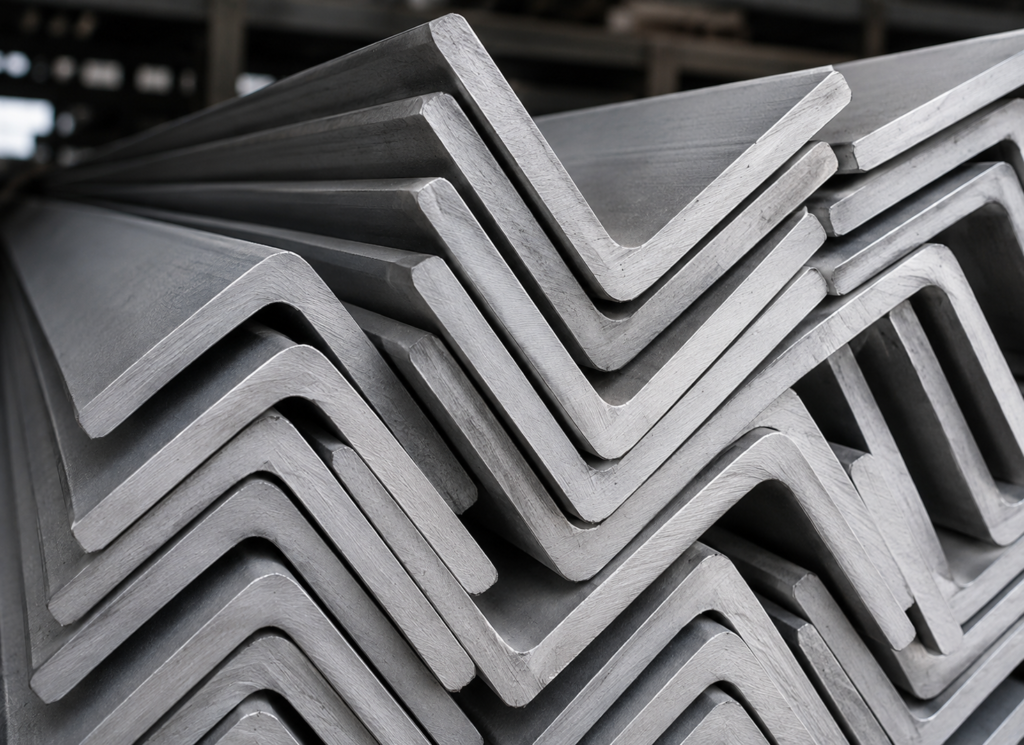

Equal-shelf steel angles according to EN 10056 are used in construction, mechanical engineering, and other industries where strong metal structures are required. They have good weldability, mechanical strength, and resistance to loads.
🛠 Technical Specifications (EN 10056-1)
| Angle Bar Size (mm) | Thickness (mm) | Weight (kg/m) | Cross-Sectional Area (cm²) |
|---|---|---|---|
| 20 x 20 | 3 | 0.88 | 1.12 |
| 30 x 30 | 4 | 1.72 | 2.20 |
| 50 x 50 | 5 | 3.85 | 4.90 |
| 80 x 80 | 8 | 9.85 | 12.50 |
| 100 x 100 | 10 | 15.00 | 19.20 |
⚙ Applications
🌟 Features
|
Forms of delivery of European steel angles according to EN 10056 and EN 10055 Equal Corners |
||
| EN10056 |
size s: |
20 x 3 – 250 x 28 mm |
|
length: |
6 – 12 m | |
|
Steel grades: |
S235JRG2 / RSt 37-2 | |
| S355JO / St 52-3 | ||
| S355 J2G3 / St 52-N | ||
