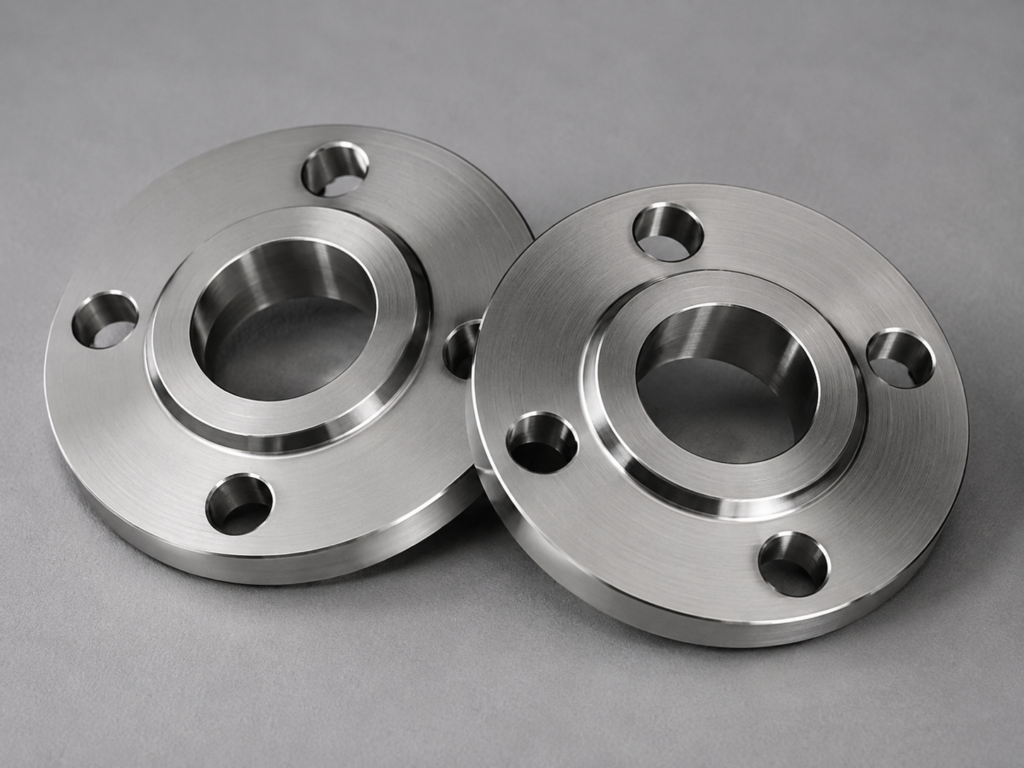

ASME B16.5 & B16.47 Steel Pipe Flanges

ASME 16.5/16.47 Flanges

Steel pipe flanges ANSI and ASME 16.5/16.47 are now found in the catalogs of many companies, and a quite reasonable question arises: what is the difference between standards, for example, ANSI 16.5 and ASME 16.5? Which flanges are the “right” ones to buy for your standard?

Standard 16.5 was first published by ANSI in 1973. Prior to that, it was the ASA standard. In 1996, the standard was changed to ASME 16.5. 10 years before the change, the standard included both and was listed in product catalogs as ANSI/ASME 16.5.

So what’s the difference ? The answer is no difference. The ASA, ANSI, and ASME have been constantly improving and expanding the 16.5 standard. The current and correct standard is ASME 16.5. ANSI 16.5 is an industry standard jargon and is still widely used today by architects, engineers, manufacturers and suppliers. And while ANSI 16.5 doesn’t technically exist, it’s understood to be another way of referring to ASME 16.5.

ASME flanges under 16.5/16.47 defined under such parameters as:
• overall dimensions;
• tolerances;
• materials;
• markings;
• nominal pressure/temperature;
• pressure test.
We offer you industrial and commercial flanges from quality raw materials at the most affordable cost. We provide the highest quality products and the fastest delivery times.

ASME 16.5/ 16.47 flanges
Collar WN ASME B16.5/16.47 Class 150-Class 2500	Steel grades A/SA 105/C21, P250GH, P280GH A/SA 182 Gr. F5, F9, F11, F12, F22, F91 A/SA 350 Gr. LF2, P355QH1 A/SA 694 Gr. F52, F60, F65 A/SA 182 Gr. F304/L, F316/L, F321/H 1.4541, 1.4571 F53 (Superduplex), F51 (Duplex ) Special steels
Silent BL ASME B16.5/16.47 Class 150-Class 2500
Flat SO ASME B16 .5 Class 150-Class 1500
Loose LJ ASME B16.5 Class 150-Class 1500
Threaded THRD ASME B16.5 Class 150-Class 1500
Flare SW ASME B16.5 Class 150-Class 1500
Long Collar LWN ASME B16.5 Class 150-Class 1500
