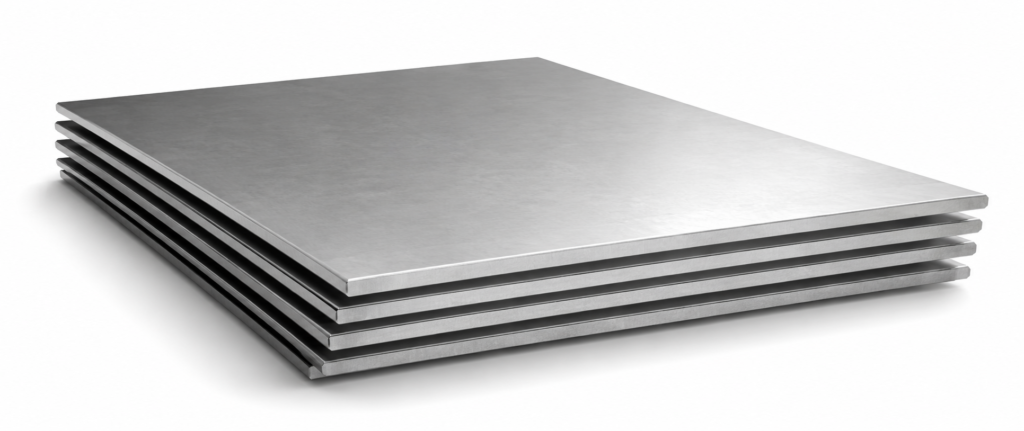

Boiler sheet steel 16Mo3 / 1.5415 / 15M According to its characteristics, boiler steel grade 16Mo3 complies with European standards EN10028-2. Unalloyed and alloyed materials are supplied as flat products designed for high pressure, elevated temperature applications. The properties of steel are determined by the content of silicon, copper, nickel and molybdenum in it. At […]
According to its characteristics, boiler steel grade 16Mo3
complies with European standards EN10028-2. Unalloyed and alloyed materials are supplied as flat products designed for high pressure, elevated temperature applications.
The properties of steel are determined by the content of silicon, copper, nickel and molybdenum in it. At the same time, their total share should not exceed 70%.
Special properties
Heat-resistant steel grades 16Mo3 are characterized by minimum yield strength, ability to work at elevated temperatures, the level of which can reach 450 degrees.
Normalization of the structure occurs at a temperature of 890-950 degrees. Forging is carried out in the range from 1260 to 750 degrees.
The material has no restrictions on weldability. It is possible to use manual arc, automatic arc, performed under a flux and in a protective gas environment, and electroslag welding.
Applications
EN10028-2 is used in the production of various tanks, heat exchangers, boilers. At the same time, the affordable price for the boiler pipe, as well as for other elements made of this steel, ensures its considerable popularity.
Chemical composition of steel 16Mo3
| C | Si | Mn | P | S | Mo | Fe |
| 0.12-0.22 | <0.35 | 0.4-0.9 | <0.025 | <0.015 | 0.25-0.35 | Other |
Mechanical properties of 16Mo3 steel
|
Nominal thickness, mm |
Yield strength, min, ReH, N/mm2 |
Tensile strength, Rm, N/mm2 |
Relative elongation, min., % |
KV impact work at 0°C 32 °F min., J |
||
|
Longitudinal swatches |
Cross swatches |
Longitudinal swatches |
Cross patterns |
|||
|
+ N |
||||||
|
< 35 |
295 |
440-570 |
23 |
21 |
50 |
34 |
|
35 – 70 |
285 |
440-570 |
23 |
21 |
50 |
34 |
|
70 – 100 |
275 |
440-570 |
23 |
21 |
50 |
34 |
|
+ QT |
||||||
|
< 35 |
295 |
440 – 570 |
23 |
21 |
50 |
34 |
|
35 – 70 |
285 |
440 – 570 |
23 |
21 |
50 |
34 |
|
70 – 100 |
275 |
440 – 570 |
23 |
21 |
50 |
34 |
|
100 – 250 |
265 |
440 – 570 |
23 |
21 |
50 |
34 |
|
250 – 500 |
250 |
420 – 550 |
23 |
21 |
50 |
34 |
16Mo3 steel delivery forms
| Мsteel arches EN 10028 |
Steel grade DIN | Dimensions mm | ||
| Thickness | Width | Length up to | ||
| 16Mo3 | 1.5415 | 1.5 – 200 | 1000 – 3000 | 13,000 |
