Steel 1.0301 / C10 / St10
Chemical properties of steel 1.0301
|
C |
Si |
Mn |
P |
S |
Fe |
|
0.07 – 0.13 |
<0.4 |
0.3 – 0.6 |
<0.045 |
<0.045 |
Other |
|
+SH |
||||||
|
Nominal thickness, mm |
16-100 |
|||||
|
Tensile strength ( tensile strength), min., Rm, MPa |
310-550 |
|||||
|
Brinell hardness, HB max. |
92-163 |
|||||
|
+C |
||||||
|
Nominal thickness, mm |
5-10 |
10-16 |
16-40 |
40-63 |
63-100 |
|
|
Yield strength, min. , ReH, MPa |
350 |
300 |
250 |
200 |
180 |
|
|
Tensile strength (tensile strength), min., Rm, MPa |
460-760 |
430-730 |
400-700 |
350-640 |
320-580 |
|
|
Relative elongation , min, % |
8 |
9 |
10 |
12 |
12 |
|
|

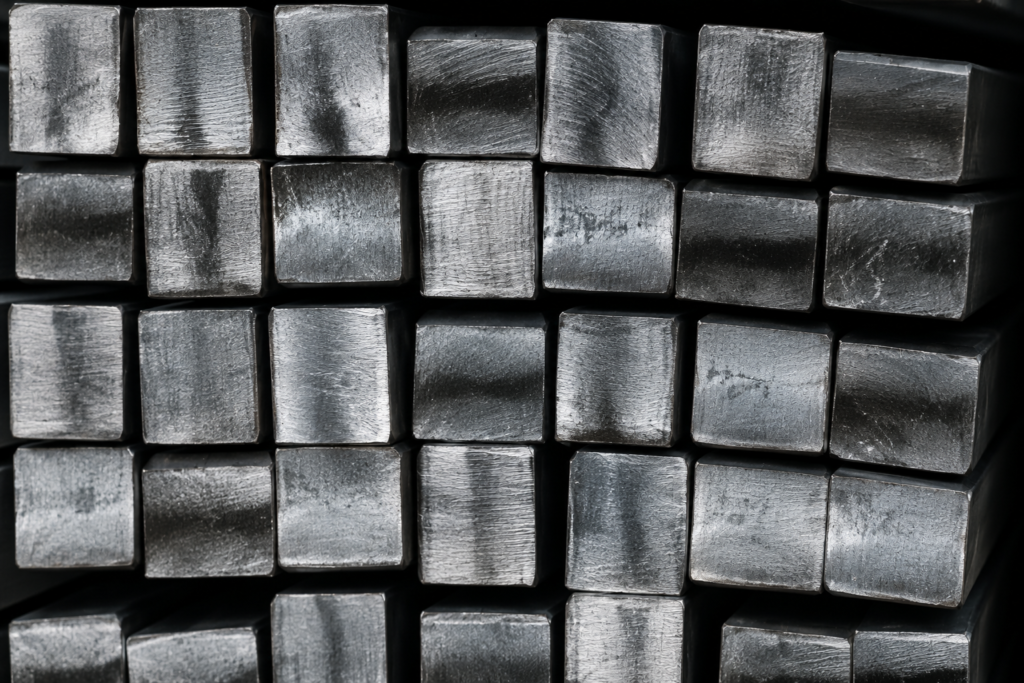

Steel squares |
|
| Steel grades | Dimensions supplied (mm) |
| Steel square 1.0301 / St10 | |
