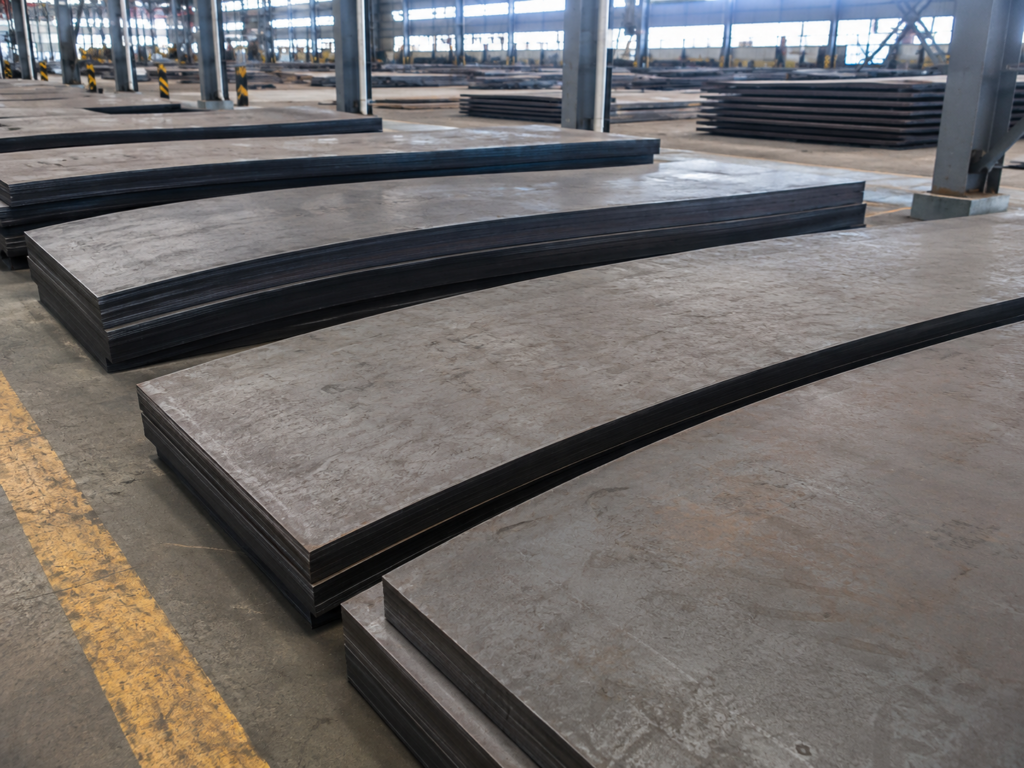

RAEX 400 / 450 / 500 Abrasion Resistant Plate

Wear-resistant steel RAEX 400,450, 500

RAEX grades 400 and 500 hardenable wear steel is an innovative material with impressive performance properties that allow it to be used in quite difficult operating conditions. The high wear resistance of the material makes it possible to manufacture products of small mass, almost any shape and with a very long service life, at significantly lower costs.

Special Properties

RAEX 400 and 500 are characterized by high strength, hardness and resistance to surface pressure, which ensures high wear resistance become.

The material lends itself well to bending, cutting and welding, but not designed for heat treatment.

During production, rolled products may be subjected to skin training, which involves cold pressing sheet. This allows you to remove residual stresses and give the sheet maximum flatness. In addition, the procedure simplifies the process of cutting and welding.

Applications

Steels with high wear resistance, RAEX 400 and 500, are successfully used in the production of armor plates for various purposes, excavator buckets , dump truck bodies, construction equipment knives, crushers, cutting edges and knives for processing equipment, containers, load-bearing elements of machinery and equipment.

Forms of delivery of wear-resistant steel RAEX 400, RAEX 450, RAEX 500

Brand	Thickness (mm)	Width(mm)	Length (mm)
Raex 400	2–8	1000-2000	Up to 12000
Raex 500	3-6	1000 – 2000	Up to 12000
Raex 450	2–8	1000- 20 00	Up to 12000
