Cd 99.95 / 2.2515 Cadmium Sheet (High Purity)

Name: Cd 99.95 / 2.2515 Cadmium Sheet (High Purity)
Brand: Aspersteel
SKU: 3812
Availability: InStock
Rating: 5 (1 reviews)

Copper, Brass & Bronze Product Range

Copper, Brass, Bronze alloys Copper alloys Supply UNS C11000/ DIN 2.0090/ Copper M1 Copper foil 0.02×200; 0.03×200; 0.05×200; 0.1×300; 0.15×300; 0.2×300…. UNS C11000 / DIN 2.0090/ Copper M1 UNS C12500 / Copper M2 UNS C14200 / Copper M3 Copper tape, sheet, plate Thin-walled copper pipe Capillary copper pipe Copper wire MM, MT Copper wire f0.1 […]

Description

Copper, Brass, Bronze alloys
Copper alloys		Supply
UNS C11000/ DIN 2.0090/ Copper M1		Copper foil 0.02×200; 0.03×200; 0.05×200; 0.1×300; 0.15×300; 0.2×300….
UNS C11000 / DIN 2.0090/ Copper M1 UNS C12500 / Copper M2 UNS C14200 / Copper M3		Copper tape, sheet, plate Thin-walled copper pipe Capillary copper pipe
Copper wire MM, MT		Copper wire f0.1 – 9 .42 mm
Oxygen free copper UNS C10100/ DIN 2.0040 / M0b		tape, strip, rod, pipe, wire.
Brass alloys
UNS C27400 / DIN 2.0321 / Brass L63		– Brass foil, tape, sheet, plate – Brass pipe – Brass wire L63 Ф0.2 mm – 8.0 mm – Waveguide brass tube
UNS С26800 / DIN 2.0280 / Brass L68
UNS C37000 / DIN 2.0402 / Brass L59-1
UNS C22000/ DIN 2.0230 / Brass L90
Bronze alloys
UNS C51900 / DIN 2.1020 / Bronze BrOF		Bronze ribbon, stripe
UNS C65500 / EN CuSi3Mn1 / Bronze BrKMTs3-1
DIN 2.0960 / Bronze BrAMts9-2		Tape and strip
Bronze BrNBT		Plate
UNS C17200 / DIN 2.1447 / Bronze BrB2		Bar, wire, tape, sleeve
CuNi2SiCr / MN 2.5CoCrX
CuCr1Zr / BrXTsr
CuCr / BrX7
CuAl8Fe3 / BrA7
CuAl10Fe3 / BrAzh
CuAl10Ni5Fe4 / Br.AZhN9-4-4
CuNi2Si /Br.KN 0.5-2
CuSi3Mn1 / Br.KMTs3-1
CuNi15Zn20 / MNTs 15-20
CuSn4 / Br.OF4-0.25
CuSn5 / Br.OF5.5-0.3
CuSn9 /Br.OF6.5-0.15
CuSn8 / Br.OF7-0.2
CuSn4Zn4Pb4 / Br.OCS4-4-2.5
CuZn9Pb2 / Br. OCS 6-7-3
Cu CDl / MCBB

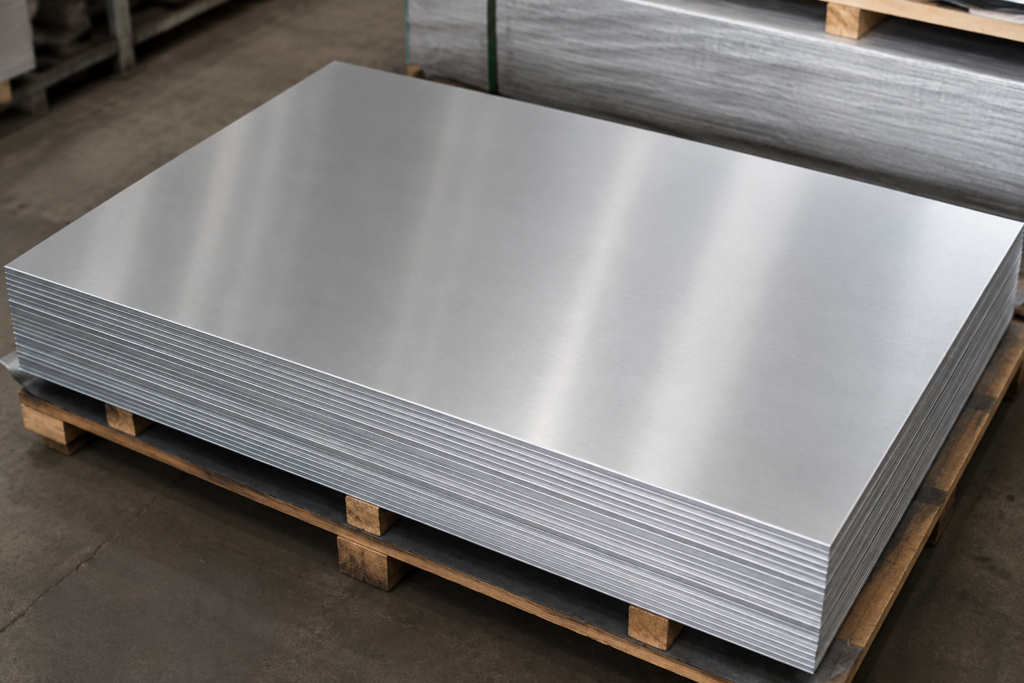

Cadmium Sheet

Material Description

Cadmium sheet is a thin sheet material made of cadmium, characterized by high corrosion resistance, excellent electrical conductivity, and good mechanical properties. Due to its unique characteristics, it is widely used in various industries.

Chemical Composition

Element	Content (%)
Cadmium (Cd)	≥ 99.95
Lead (Pb)	≤ 0.02
Iron (Fe)	≤ 0.01
Copper (Cu)	≤ 0.01

Mechanical Properties

Parameter	Value
Density	8.65 g/cm³
Hardness	20-30 HB
Tensile Strength	50-70 MPa
Elongation	25-40%
Electrical Conductivity	12-14 MS/m

Key Advantages

High corrosion resistance – ensures durability in aggressive environments.
Excellent electrical conductivity – suitable for use in electrical systems.
Flexibility and plasticity – easily subjected to mechanical processing and forming.
Acid-resistant properties – widely used in the chemical industry.

Main Applications

Industry	Examples of Use
Electrical Engineering	Contact coatings, conductors
Aerospace Industry	Anti-corrosion coatings, protective shields
Chemical Industry	Acid-resistant protection
Mechanical Engineering	Alloys, coatings for bearings

Conclusion

Cadmium sheet is a reliable material that combines excellent corrosion resistance, electrical conductivity, and flexibility. Thanks to its properties, it is actively used in the electrical, aerospace, and chemical industries.
