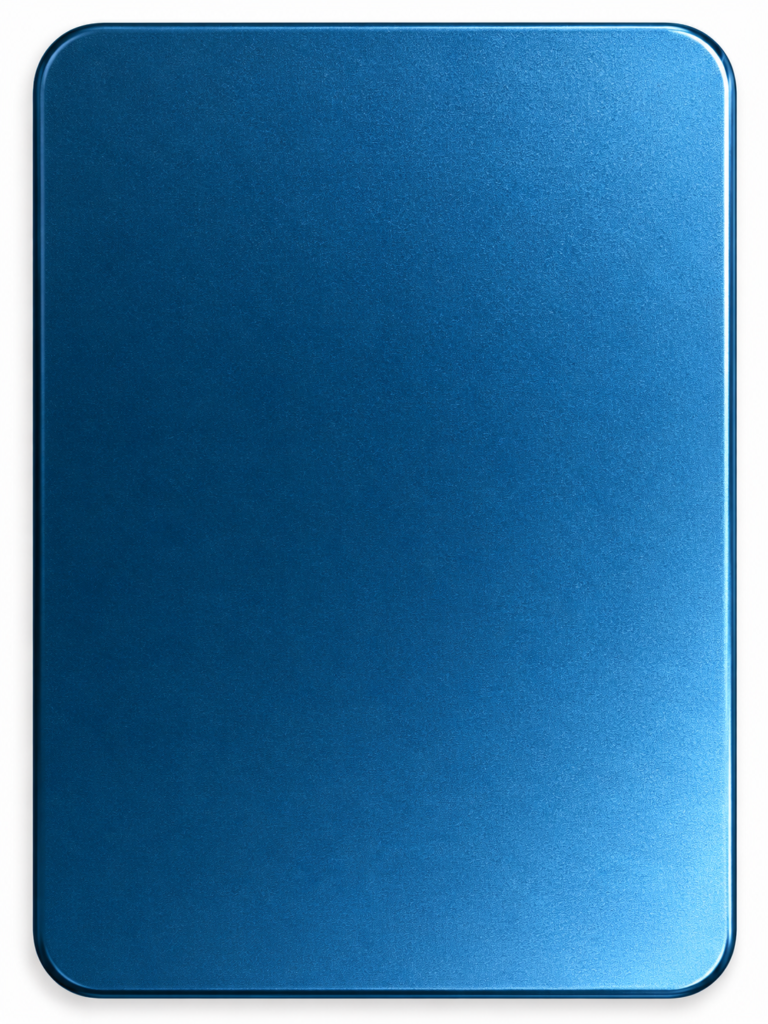

AISI 304 / 1.4301 PVD Coated Stainless Steel

⭐ Colored Stainless Steel with PVD Coating ⭐

🔥 General Technical Characteristics: Colored stainless steel with PVD coating (Physical Vapor Deposition) is a material with high aesthetic and operational properties. It combines the strength of stainless steel with the decorative effect of colored coating.

✔ Base Material: Stainless steel grades AISI 201, 304, 316. ✔ Thickness: 0.5 mm – 2.0 mm. ✔ Surface Type: Mirror, satin, polished, textured. ✔ Colors: Gold, black, bronze, blue, pink, rainbow. ✔ Coating Technology: PVD (Physical Vapor Deposition). ✔ Corrosion Resistance: High. ✔ Resistance to Mechanical Damage: Increased. ✔ Service Life: 15-25 years.

🏢 Applications: Colored stainless steel with PVD coating is widely used in:

• Construction and Architecture (facade finishing, decorative panels, doors).
• Interior Design (ceiling, wall, and furniture finishing, decorative elements).
• Furniture Manufacturing (table legs, corners, strips, decorative stands).
• Advertising and Exhibition Structures (exhibition stands, logos, display cladding).
• Mechanical Engineering and Transport (interior finishing of cars, transport, public transport stops).

💡 Features:

• Scratch, wear, and oxidation resistance.
• Eco-friendliness: Does not emit harmful substances.
• Hygienic and easy to maintain.
• High decorative appeal and a variety of colors.
• Durability and color retention over time.

🏆 Chemical Composition and Mechanical Properties:

• AISI 201: Fe – 72%, Cr – 16-18%, Ni – 3.5-5.5%, Mn – 5-7%.
• AISI 304: Fe – 69%, Cr – 18-20%, Ni – 8-10%, C – 0.08%.
• AISI 316: Fe – 68%, Cr – 16-18%, Ni – 10-14%, Mo – 2-3%.
• Tensile Strength: 500-700 MPa.
• Density: 7.93 g/cm³.
• Hardness: 180-200 HV.

Thickness:

0.80 / 1.50 mm

Dimensions:

1250 x 2500 mm

special sizes on request
