AISI 304 / 1.4301 Stainless Steel

Corrugated Stainless Steel – Durable and Long-Lasting Material for Various Applications

General Technical Characteristics

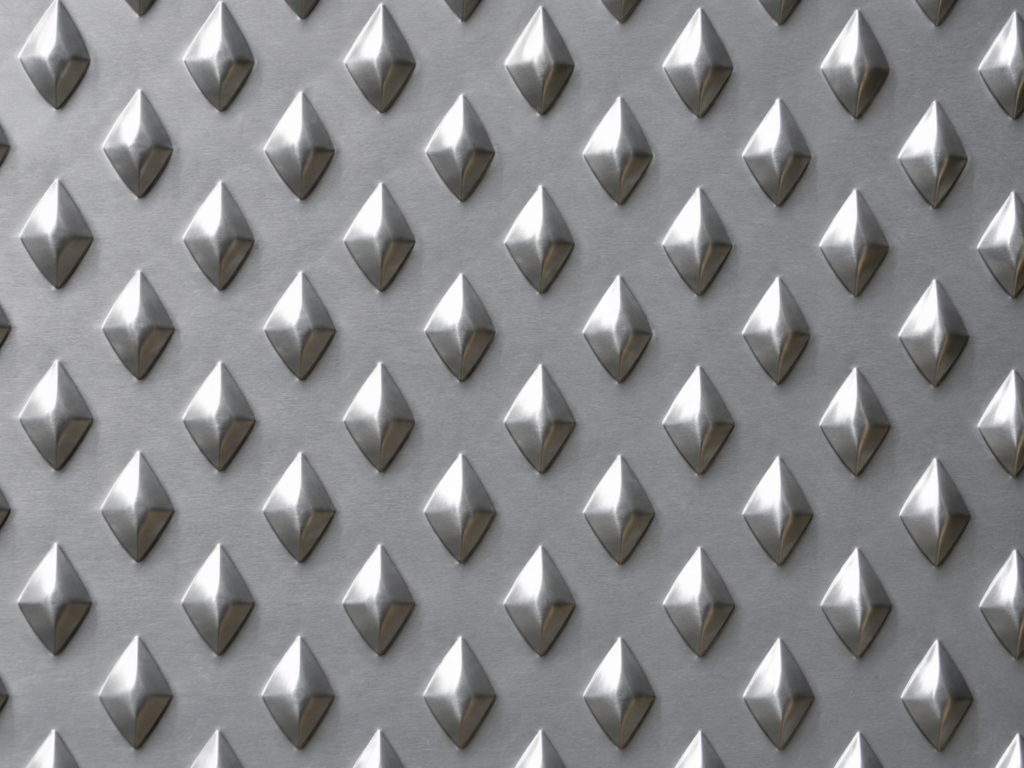

Corrugated stainless steel is a metal sheet with a characteristic pattern (corrugation) on the surface, providing enhanced grip and slip resistance. It is made from alloys based on iron, chromium, nickel, and other elements that ensure high corrosion resistance and mechanical strength. The most common steel grades for the production of corrugated sheets are AISI 304, AISI 316, and AISI 430.

Main parameters:

• Thickness: 0.30 mm – 20.00 mm
• Sheet width: 1000 mm, 1250 mm, 1500 mm.
• Maximum length: 4000 mm
• Corrugation type: lentil, quintet, arc pattern.
• Surface: matte, mirror, polished.
• Production method: hot-rolled or cold-rolled.

Applications

Corrugated stainless steel is widely used in various industries due to its operational characteristics:

• Construction and architecture: staircase cladding, flooring, vandal-proof structures.
• Food industry: production of kitchen equipment, technological lines.
• Mechanical engineering: manufacturing of special-purpose vehicle bodies, pallets, platforms.
• Transport: floors of trucks, wagons, buses.
• Chemical industry: tanks, containers for storing aggressive liquids.
• Design and interior: decorative elements, loft-style furniture.

Features

• High corrosion resistance: due to the presence of chromium, a protective oxide film is formed.
• Anti-slip effect: the corrugated structure prevents slipping, which is especially important in wet environments.
• Strength and durability: steel does not deform under mechanical stress.
• Hygiene: easy to clean and meets sanitary standards.
• Aesthetic appearance: gives products a modern style and attractiveness.

Chemical Composition (for AISI 304, %):

• C (Carbon) – ≤ 0.08
• Si (Silicon) – ≤ 1.00
• Mn (Manganese) – ≤ 2.00
• P (Phosphorus) – ≤ 0.045
• S (Sulfur) – ≤ 0.030
• Cr (Chromium) – 18.0-20.0
• Ni (Nickel) – 8.0-10.5

Mechanical Properties:

• Yield Strength: ≥ 205 MPa
• Tensile Strength: ≥ 515 MPa
• Elongation: ≥ 40%
• Hardness (HB): ≤ 201

Corrugated stainless steel is the ideal solution for industrial and commercial applications, ensuring reliability, safety, and durability of structures. In our online store, you can buy corrugated stainless steel with fast delivery at a competitive price!
