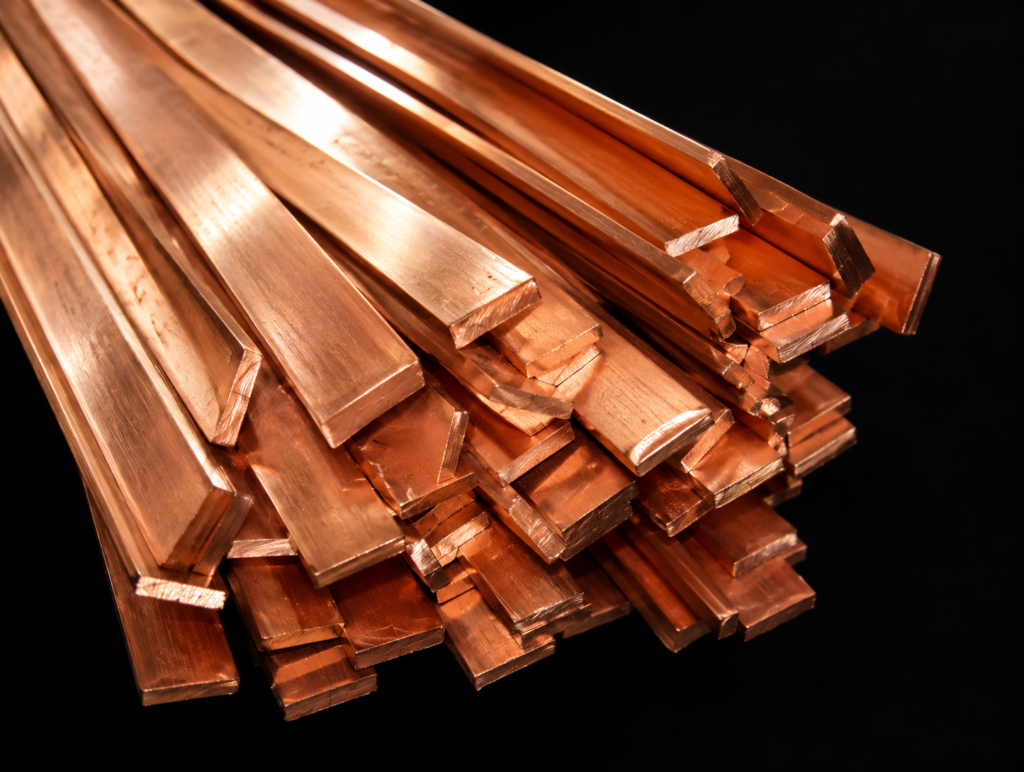

M1 / Сu-ETP / CW004A copper delivery forms UNS C 11000 / DIN 2.0090/ Copper M1 tape, strip, rod, pipe, wire, sheet, plate Copper alloy M1 / Cu-ETP / CW004A Metal copper is one of the most demanded in modern industry and production. The use of copper-based alloys is quite wide, due to such technical […]
|
UNS C 11000 / DIN 2.0090/ Copper M1 |
tape, strip, rod, pipe, wire, sheet, plate |
Metal copper is one of the most demanded in modern industry and production. The use of copper-based alloys is quite wide, due to such technical parameters and characteristics as
excellent electrical conductivity,
good thermal conductivity,
resistance to all types of corrosion,
easy to make
enough low cost.
Copper, which is priced by grade, is completely non-magnetic. It lends itself perfectly to additional processing – bending, cutting, welding, soldering. Alloy uns c11000 is an electrolytic solid copper deposit that is obtained from cathode copper by electrolytic refining.
C11000 alloy copper sheet is regarded as one of the most sought after products in the market. The electrical conductivity of such products is over 100% IACS. In terms of oxygen content, the alloy is similar to the closest analogues, but its degree of purity is much higher. The content of impurities, in particular sulfur, is less than 50*10-6 shares.
phone numbers listed on the website. Experienced managers will answer any questions and advise if necessary.
Chemical composition of M1 copper
|
Fe |
Ni |
S |
As |
Pb |
Zn |
O |
Sb |
Bi |
Sn |
– |
|
to 0.005 |
to 0.002 |
to 0.004 |
to 0.002 |
to 0.005 |
to 0.004 |
to 0.05 |
to 0.002 |
to 0.001 |
to 0.002 |
Cu+Ag min 99.9 |
|
UNS C 11000 / DIN 2.0090/ Copper M1 |
tape, strip, bar, pipe, wire, sheet, plate |
]
