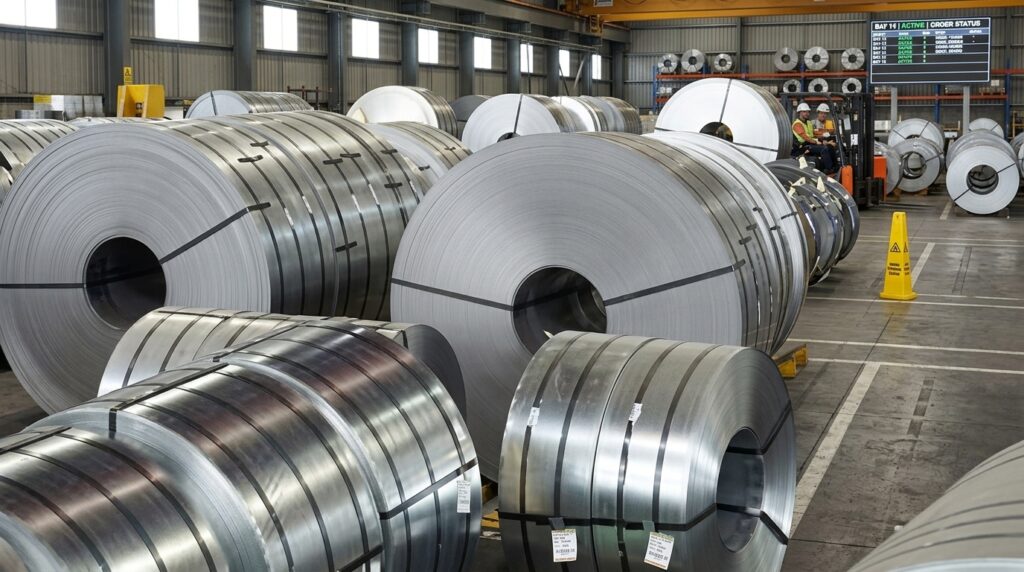

M140-30S Grain-Oriented Electrical Steel

Electrical steel 3407 / 27G120 / 30G120

Steel grade 3407 is an electrical sulfide alloy with an unregulated chemical composition, which, like the smelting procedure, is determined by the manufacturer. On a steel sheet, GOST determines the permissible limits for the content of silicon, which can be from 2.8 to 3.8%. The basis of the alloy, with a share of up to 96%, is iron. Special properties The material belongs to the group of cold-rolled thin-sheet anisotropic rolled products with an oriented rib structure that provides significant magnetic permeability in the direction of rolling and minimal specific losses in a weak field. For a high relative magnetic permeability in a weak and medium field, minimal eddy current losses, an increase in electrical resistivity, up to 0.5-10⁶Ohm per meter, a decrease in density up to 7650 kilograms per cubic meter also affects the significant content of silicon in the alloy. The affordable sheet price for metal is explained by the availability and low cost of all alloy components. Applications Taking into account the special properties, it is possible to buy 3407 steel sheet for the manufacture of components for the magnetic circuits of electric machines, various devices and transformers.

Chemical composition of grade 3407

Magnetic properties of material 3407

Delivery forms of electrical steel 3407

Sheet/Roll	Thickness 0.35mm, 0.27mm, 0, 30mm Width 40mm – 1290mm
Overlay	T2, T4, HW, C5 and C6
Standards	EU EN 10106/2007 USA ASTM A677-07 RUSSIA GOST 21427.2/1983 JAPAN JIS C 2552/ 2000
