1.2842 / 90MnCrV8 Cold Work Tool Steel

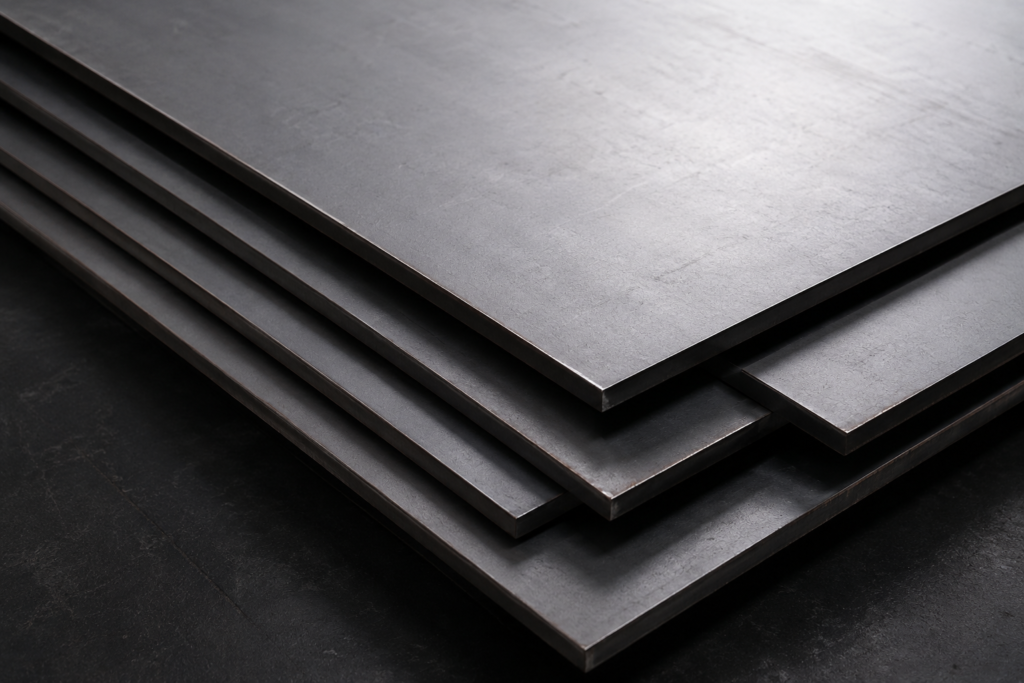

Sheet Steel 1.2842 / 9G2F

📌 Overview and Technical Specifications

Sheet steel 1.2842 / 9G2F is a high-quality carbon tool steel that combines high hardness, wear resistance, and excellent mechanical properties. It is well-suited for heat treatment and is widely used in the production of cutting and stamping tools.

🛠 Specifications:

• Hardness: 190–240 HB (annealed), up to 62 HRC (hardened)
• Thickness: from 1 mm to 50 mm
• Yield strength: 1000–1200 MPa
• Tensile strength: 1400–1800 MPa
• Elongation: 8–12%

🧪 Chemical Composition

• Carbon (C): 0.85 – 1.00%
• Silicon (Si): 0.10 – 0.40%
• Manganese (Mn): 1.80 – 2.20%
• Chromium (Cr): 0.30 – 0.50%
• Molybdenum (Mo): 0.10 – 0.30%
• Phosphorus (P): ≤0.025%
• Sulfur (S): ≤0.025%

⚙ Applications

Steel 1.2842 / 9G2F is widely used in the following industries:

• 🔩 Production of stamping and cutting tools
• 🏗 Manufacturing of parts for cold stamping
• 🛠 Forming and impact-resistant components
• 🚜 Components for machinery and mechanisms operating under high loads

🌟 Features

• ✅ High wear resistance and hardness
• ✅ Stability during heat treatment
• ✅ Good impact toughness
• ✅ Excellent resistance to mechanical loads

Steel Supply Forms 1.2842 / 90MnCrV8 / 9Г2Ф
