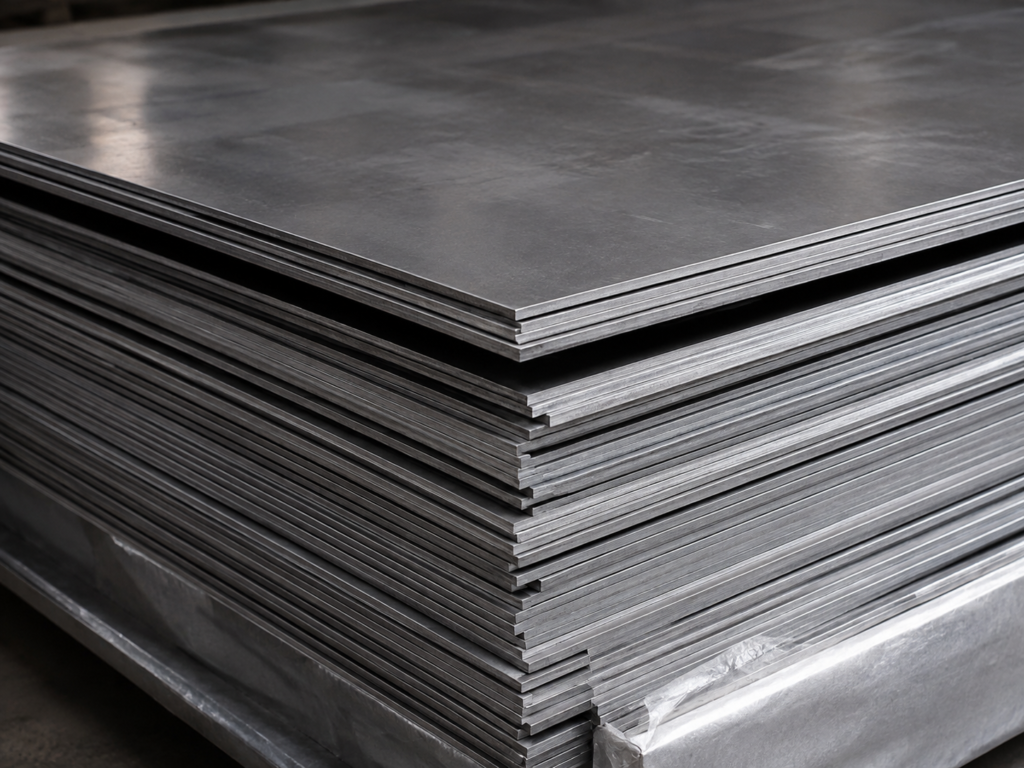

Sheet Steel P265GH / 1.0425
Sheet Steel P265GH / 1.0425 is a high-quality structural steel widely used in the energy sector, boiler manufacturing, and the petrochemical industry. It features excellent heat resistance, weldability, and mechanical properties.
| Parameter | Value |
|---|---|
| Tensile Strength (MPa) | 410–530 |
| Yield Strength (MPa) | ≥ 265 |
| Elongation (%) | ≥ 21 |
| Elastic Modulus (GPa) | 200–220 |
| Density (g/cm³) | 7.85 |
| Operating Temperature (°C) | up to 450 |
| Steel Grade | Available Sizes (mm) |
|---|---|
| P265GH / 1.0425 | – Thickness: 3-100 mm |
| – Width: up to 3000 mm | |
| – Length: up to 12000 mm |
✔ High heat resistance for operation at elevated temperatures. ✔ Excellent weldability without the need for preheating. ✔ Superior plasticity and mechanical stability. ✔ Resistance to high pressure and mechanical stress.
Sheet Steel P265GH / 1.0425 is a reliable choice for industrial equipment operating in demanding conditions.
P265GH delivery forms
|
Boiler steel grades |
|||||
| Steel grades EN 10028 |
Steel grade DIN | Dimensions mm | Special thicknesses | ||
| Thickness | Width | Length up to | |||
| P 265 GH | 1.0425 | 3 – 250 | 1000 – 4000 | 14,000 | 7,9,11,13,14,16,18,22,28,32 |
