Overhead traveling cranes type Designation DIN Profil number Weight kg/m P mm H mm C mm A mm Old New KS 22 A 45 1 22.1 125 55 45 24 KS 32 A 55 2 31.8 150 65 55 31 KS 43 A 65 3 43.1 175 75 65 38 KS 56 A 75 4 […]
| Overhead traveling cranes type | |||||||
| Designation DIN | Profil number | Weight kg/m | P mm | H mm | C mm | A mm | |
| Old | New | ||||||
| KS 22 | A 45 | 1 | 22.1 | 125 | 55 | 45 | 24 |
| KS 32 | A 55 | 2 | 31.8 | 150 | 65 | 55 | 31 |
| KS 43 | A 65 | 3 | 43.1 | 175 | 75 | 65 | 38 |
| KS 56 | A 75 | 4 | 56.2 | 200 | 85 | 75 | 45 |
| KS 75 | A 100 | 5 | 74.3 | 200 | 95 | 100 | 60 |
| KS 101 | A 120 | 6 | 100 | 220 | 105 | 120 | 72 |
| A 150 | 7 | 150.3 | 220 | 150 | 150 | 80 | |
,

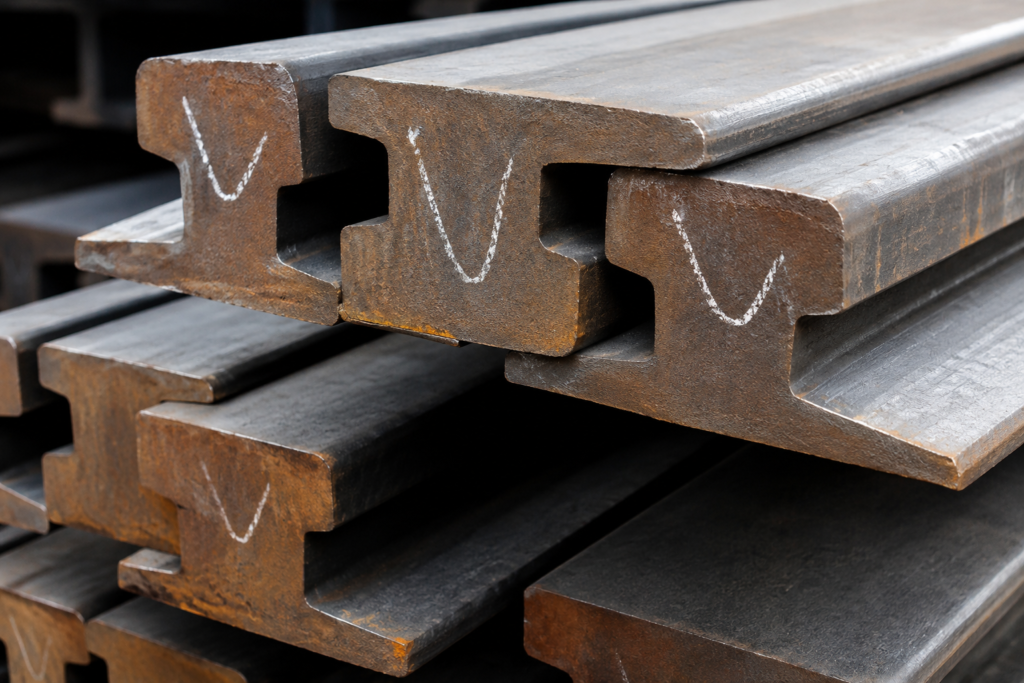

Hot-rolled crane rails with a flat bottom DIN 536 A45-A150 can be used to form tracks for all types of cranes. According to the current standard, it is made of carbon steels with a high manganese content, which largely determines the operational properties of the product.
Types of rolled products
A distinctive feature of the product is the presence of a very wide sole and a fairly thick neck, which ensures a low center of gravity, and therefore contributes to high stability when subjected to lateral forces.
The DIN 536 A45-A150 crane rail is available in seven sizes:
– with a head width of 45 up to 150 millimeters;
– with sole width from 125 to 220 millimeters;
– with neck thickness from 24 to 80 millimeters.
Performance properties
Crane rails DIN 536 are characterized by:
– weight of one linear meter from 22.1 to 150.3 kilograms;
– minimum tensile strength of 20 newtons per square millimeter;
– minimum strength on gap from 690 to 880 newtons per square millimeter;
– length, which can be 6, 10 and 12 meters, being the most popular, as well as 15 and 18 meters.
