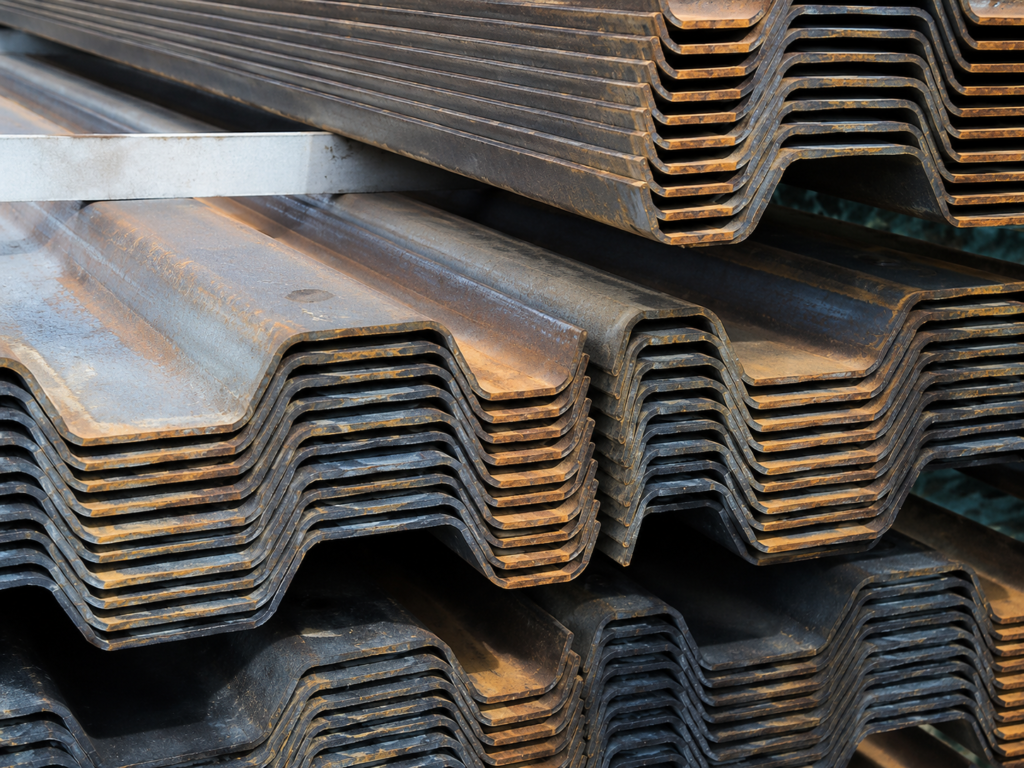

Trench Shoring & Sheet Piling Steel

Trench Steel Sheet: Reliable Protection for Earthworks

General Technical Characteristics

The trench steel sheet is a specialized metal structure designed to reinforce trench and pit walls during earthworks. The product is manufactured from high-strength structural steel with additional reinforcement elements.

Basic technical parameters:

• Standard dimensions: 2000-3000 x 1000-1500 mm
• Sheet thickness: from 8 to 16 mm
• Weight per sheet: from 120 to 560 kg
• Load-bearing capacity: up to 5 tons per square meter
• Stiffening ribs: spacing 300-500 mm
• Anti-corrosion coating: primer GF-021

Additional elements:

• Lifting lugs for rigging
• Fastening elements
• Interlocking connections
• Reinforcing plates
• Bracing systems

Applications

Trench steel sheets are widely used in various types of construction and installation works:

1. Utility construction:

• Installation of utility networks
• Pipeline repairs
• Manhole installation
• Cable line installation

2. Industrial construction:

• Reinforcement of pit walls
• Protection against soil collapse
• Creation of temporary barriers
• Ensuring work zone safety

3. Road construction:

• Drainage system installation
• Underground utilities laying
• Repair works
• Roadside trench reinforcement

Features and Advantages

Trench steel sheets have several important features:

1. Safety:

• Reliable protection against soil collapse
• High structural strength
• Resistance to deformation
• Safety of operations in the trench

2. Technological advantages:

• Quick installation and dismantling
• Possibility of multiple use
• Easy transportation
• Convenient storage

3. Structural advantages:

• Reinforced stiffening ribs
• Reliable fastening elements
• Anti-corrosion protection
• Reinforced structure edges

4. Cost-effectiveness:

• Long service life
• Rental options available
• Minimal maintenance costs
• Quick return on investment when purchasing

Our company offers a wide range of trench steel sheets in various sizes and configurations. All products are certified and meet safety requirements. We provide:

• Professional consultation on trench sheet selection
• Calculation of required material quantities
• Optimal delivery times
• Technical support during installation
• Trench sheet rental services

When ordering trench sheets, our specialists will:

• Help determine optimal dimensions
• Calculate the required quantity
• Offer the most favorable delivery or rental terms
• Provide technical support

For safe earthworks, we recommend using comprehensive solutions that include not only trench sheets but also additional fastening elements and bracing systems.

Contact our managers for detailed information about technical specifications, prices, and delivery terms for trench steel sheets. We will help you select the optimal solution for your construction tasks.

Trench sheets

CR 430 – CR 450

KD 400

KD 500

KD 600

KD 750
